TP-12 senses light in various colors and wavelengths, converts optical pulses into electrical pulses, and supports different power modes and connector options for project integration.

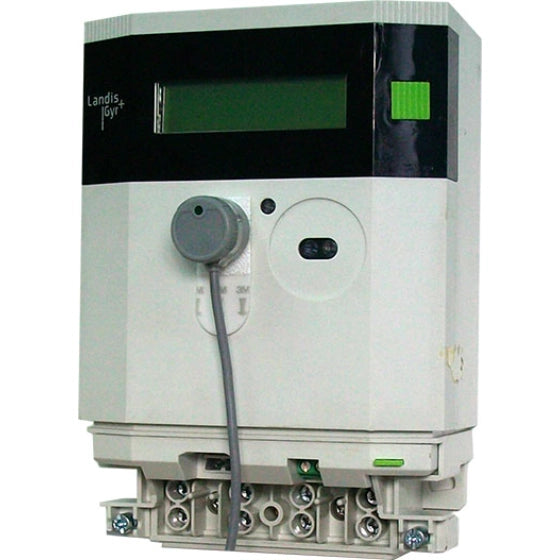

TP-12 Mini Optical Probe for Smart Meter Pulse Detection
The TP-12 optical scanning probe detects visible light and infrared LED pulses emitted by smart meters, then converts them into electrical pulses for calibration and pulse acquisition. It supports +5 V external power with LED indication and +3.3 V low-consumption battery-powered operation with the LED disabled.
ModelTP-12
Power SupplyDC 5 V / DC 3.3 V
Pulse FrequencyUp to 5 kHz
ProtectionIP54
Low-Power Optical Pulse Detection for Smart Metering
Flexible Fixed Method

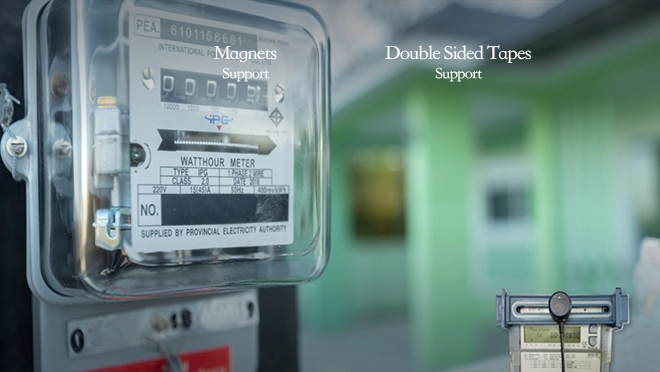

The probe supports magnets, 3M double-sided tape and other mounting methods. Double-sided tape is widely used because it is simple to fix and protective for the meter surface.
High Sensitivity

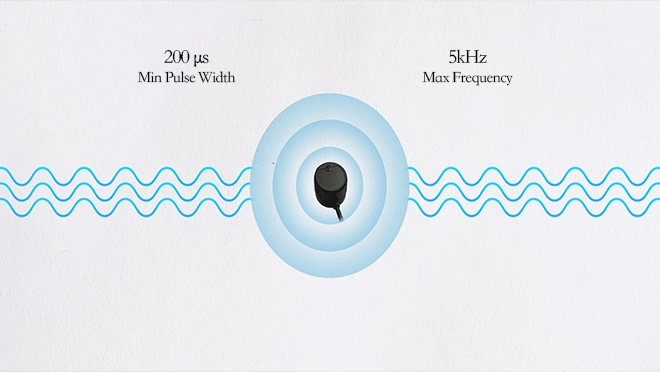

With a maximum pulse frequency of 5 kHz and a minimum pulse width of 200 ms, TP-12 can detect different light colors with strong anti-interference performance indoors and outdoors.

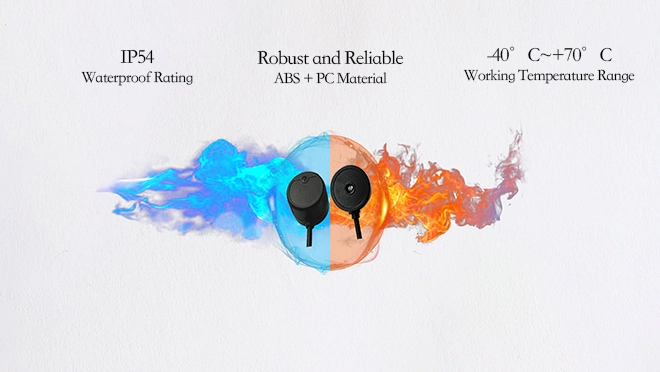

Excellent Performance in Harsh Environments
PC enclosure material, optional strong magnetic fixing and long-lasting cable construction help TP-12 remain stable in demanding field conditions.
Metering Equipment Technical Data
| Product Model | TP-12 |
|---|---|
| Product Type | Mini optical scanning probe for pulse detection |
| Power Supply | DC 5 V / DC 3.3 V optional |
| Power Modes | 5 V powered with LED indicator; 3.3 V powered with LED indicator disabled |
| Output Level | TTL, with 1 M load to V+ recommended |
| Power Consumption | Less than 1 uA in standby; instant pulse current less than 140 uA |
| Cable Length | 1 m standard; 2 m / 3 m optional |
| Connector | Bare wires without connector standard; customized connector available |
| Enclosure Material | PC |
| Operating Temperature | -40 C to +70 C |
| Dimensions | 22 mm diameter / 17 mm height |
| Weight | 16 g |
| Probe Fixture | 3M double-sided tape by default; magnetic / stick-on strips optional |
| Protection Class | IP54 |
Ultra-Low-Power Pulse Acquisition for Battery-Operated Projects
A battery-operated smart metering project needed stable optical pulse detection without draining device energy. TP-12's ultra-low standby power, minimal pulse current and dual power connection options support reliable pulse acquisition while protecting battery life.
