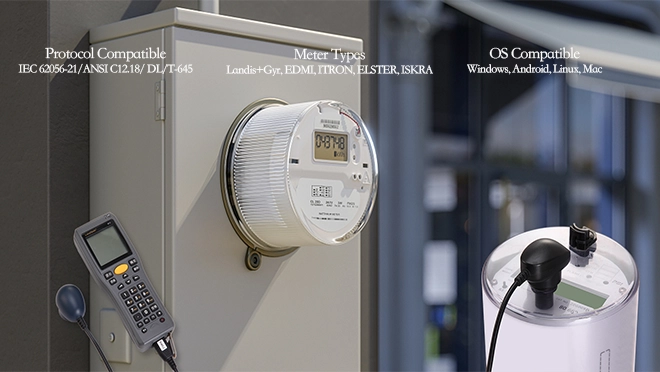

Strong Compatibility
TP-PDA works with many brands and types of electric meters and heat meters, supports common metering protocols, and adapts to field teams using different terminal devices.

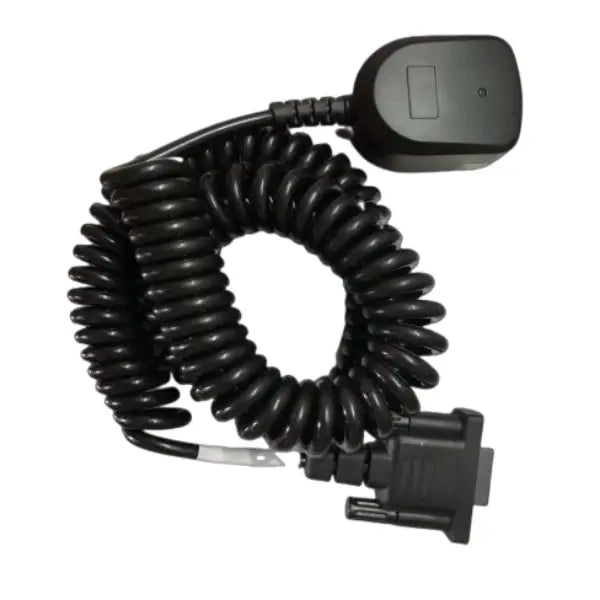

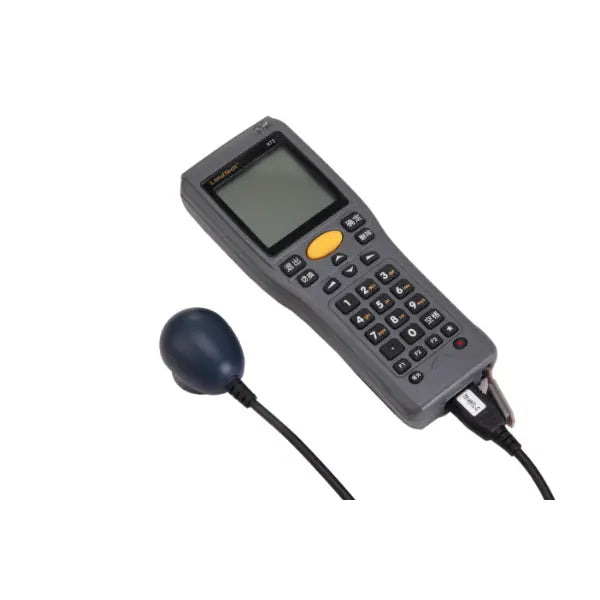

TP-PDA Series Optical Probe for Handheld Meter Reading Terminals
The TP-PDA Series Optical Probe is designed for handheld terminals, tablets, PDAs and laptops used in field meter communication. It supports RS232, RS485, TTL and USB interface options, multiple meter protocols and broad compatibility with electric meters and heat meters.
ModelTP-PDA Handheld Terminal
InterfacesRS232 / RS485 / TTL / USB
Baud Rate300-115200 bps
ProtectionIP54
Flexible Optical Communication for Field Terminals
Reliable USB and Terminal Connectivity
USB, RS232, RS485, TTL and Type-C options help the probe integrate with handheld terminals, tablets, laptops and customized collection devices.
Ultra-High Speed Communication
Communication rates from 300 to 115200 bps and transparent transfer mode support smooth integration with meters and field reading software.
Excellent Performance in Harsh Environments
PC and impact ABS housing, strong magnetic adhesion and durable cable construction support reliable operation from -40 C to +70 C.
Metering Equipment Technical Data
| Product Model | TP-PDA Handheld Terminal |
|---|---|
| Communication Interface | RS232 / RS485 / TTL / USB |
| Supported Standards | IEC 62056-21 / ANSI / ANSI-Type2 / DL/T-645 |
| Sub-Models | TP-PDA-IEC: IEC 62056-21 Mode C and E; TP-PDA-ANSI-N: ANSI C12.18; TP-PDA-ANSI-S: ANSI C12.18-2006 Type2; TP-PDA-IR645: DL/T-645-97/07 |

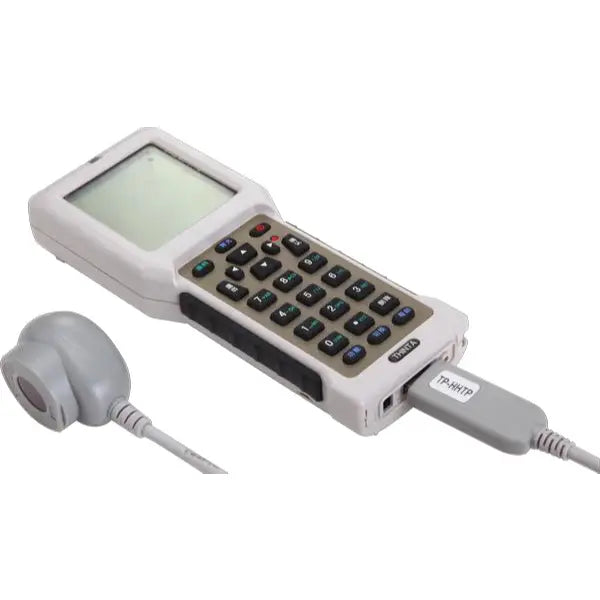

| Adaptive Terminal Options | TP-PDA-DP97 for Dolphin 9700; TP-PDA-MC75 for Motorola MC75xx; TP-PDA-iPad for Apple iPad; TP-PDA-IEC-T and TP-PDA-645 for Tespro TA-262; TP-PDA-HTTP for Zhenzhong HHU Model 900; TP-PDA-HTTJ for JieBao HHU Model 9800 / A188 |
| Maximum Baud Rate | 57600 bps in normal operation; maximum 115200 bps available |
| Connector | RS232-DB9 / USB-A / Type-C / customized connector |
| Cable Length | 2 m standard; 3 m / 4 m / 5 m optional |
| Sensor Light Wavelength | ~900 nm |
| Fastening | Strong magnetic adhesion in accordance with IEC 62056-21 |
| Magnet Holding Power | N40 / N52 optional |
| Operating Temperature | -40 C to +70 C |
| Dimensions | Optical port 32 mm diameter / L45 x H30 mm |
| Weight | 88 g |
| Enclosure Material | Impact ABS + PC housing, PC enclosure material |
| Protection Class | IP54 |
One Probe Series for Mixed Field Terminal Fleets
TP-PDA helps utilities standardize optical meter communication across field teams using tablets, PDAs and laptops. Its multi-interface design reduces hardware replacement needs, supports legacy meters and improves compatibility during smart metering upgrades.
Product Documents
Frequently Asked Questions
What is TP-PDA used for?
TP-PDA is used for optical meter communication with handheld terminals, tablets, PDAs, laptops and customized field collection devices.
Which interfaces are supported?
The series supports RS232, RS485, TTL, USB, USB-A, Type-C and customized connector options depending on project needs.
Which protocols are supported?
The series supports IEC 62056-21, ANSI C12.18, ANSI C12.18-2006 Type2 and DL/T-645 variants depending on sub-model.
