TP-17C Dual-Function Scanning Probe

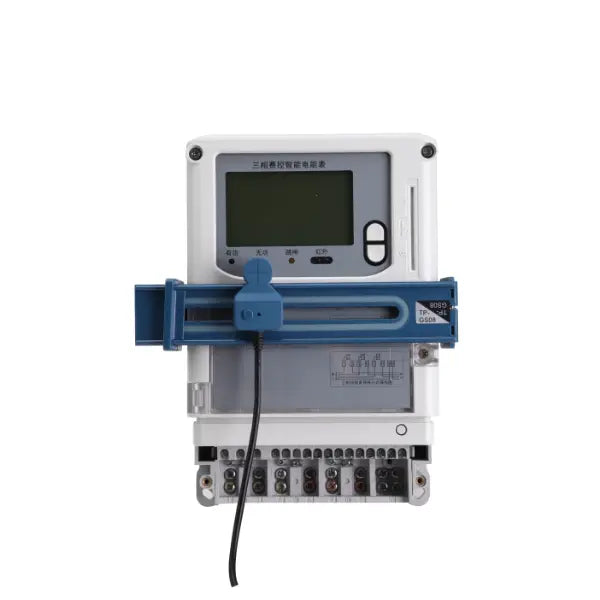

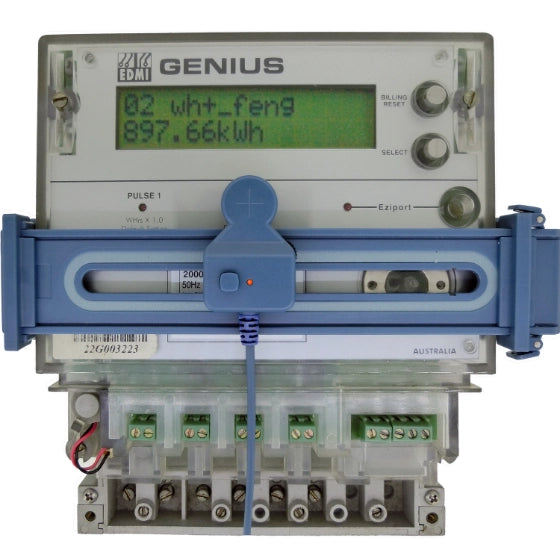

TP-17C is a third-generation TP-17 style duplex-function optical probe.It can be used in the accuracy testing of mechanical and electric meters.It is integrated in TP-GS bracket and can perfectly be applied in on-site/test bench.
ModelTP-17C
Product TypeMetering Optical Probe
PowerDC5V±10%，≤40mA(default)；DC12~36V for option
Temperature-40℃~+70℃ DataSheet Download
Built for Reliable Industrial and Smart Metering Projects
TD-DTU-PLUS Data Transmission Unit
TR-224 Industrial Cellular Router TR-225 Industrial Cellular Router TR-244 Industrial Cellular Router
5G Industrial Rugged Smart Terminal
Modular Electric Meter Test Bench
Data Transmission Unit
Meter Test Stand & Calibrators
Technical Data
| Product Model | TP-17C |
|---|---|
| Power | DC5V±10%，≤40mA(default)；DC12~36V for option |
| Fastening | Needs to be used together with TP-GS2 ro TP-GS3 |
| Temperature | -40℃~+70℃ DataSheet Download |
| Power Supply | DC 5V±10%,≤40mA(default);DC12~36V for option Working mode For mechanical meter accuracy test (LED red), function changing by button-down |
| Cable length | 3M in normal,2M for option |
| Connector | Bare wires without connector in normal Customized connector is available Mechanical & Enclosure Mechanical |
| Environment | Application temperature:-40℃~70℃ in normal |
| Dimensions | Diameter &Height 47x32x22mm |

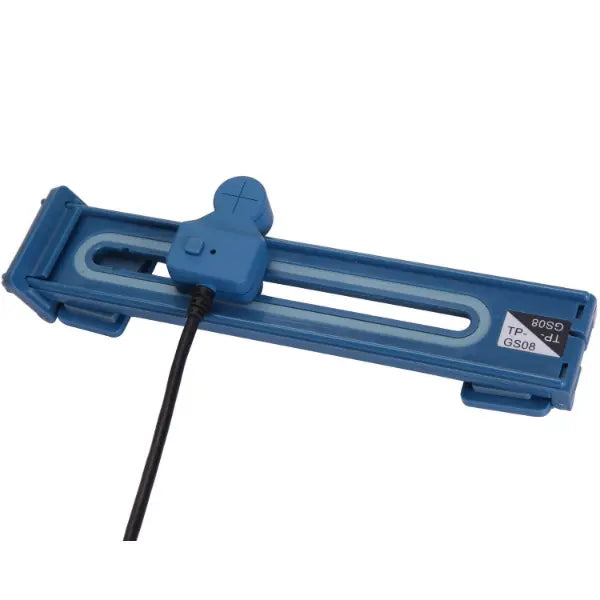

| Weight | 50 gr Accessory Probe Fixture TP-GS2 supporting fixture |
| Protection Class | IP 54 |
TP-17C Application Detail
Project-Ready Tespro Integration
TP-17C is suitable for professional smart metering, industrial IoT and utility projects that require dependable hardware, accurate product documentation and responsive project support.
Product Documents
Frequently Asked Questions
Can this product be used in my project?
Please confirm the meter interface, network, protocol and deployment environment with Tespro sales before ordering.
Do you offer project pricing?
Please contact Sales for a discount and project quotation.
Are technical documents available?
Available documents are linked in the download section. Tespro can provide additional support for project evaluation.
Can the product be customized?
Project customization depends on model, quantity and technical requirements. Contact Tespro sales for confirmation.
