Strong Compatibility
Supports IEC-62056, ANSI and DL/T645 protocols, helping the probe fit global electricity, water and gas meter standards.

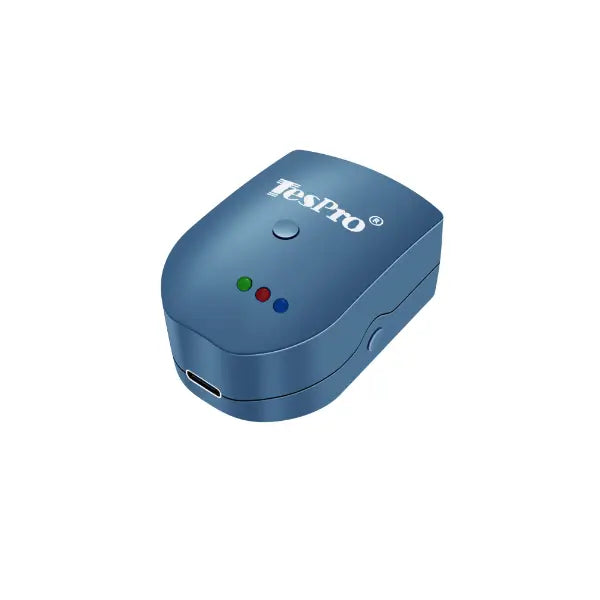

TP-BT-PLUS Bluetooth Optical Probe for Wireless Meter Reading
The TP-BT-PLUS Bluetooth optical probe is designed for convenient communication with meters through both Classic Bluetooth and Bluetooth Low Energy. It uses a low-power chipset, supports Type-C charging and USB optical probe mode with a data cable, and is built for long field operation in AMR and smart metering projects.
ModelTP-BT-PLUS
BluetoothBLE and SPP dual-mode
Working Time~60 hours
ProtectionIP65
Designed for Efficient Wireless Meter Communication
Long Communication Endurance
Equipped with an optional 800 mAh rechargeable lithium battery, the TP-BT-PLUS supports long field operation and can read up to 6000 meters without recharging under suitable conditions.
Fast Type-C Charging
Type-C USB 3.0 / OTG connection supports convenient charging and use as a USB optical probe when connected with a data cable.
Excellent Performance in Harsh Environments
IP65 protection, LED indicators, Bluetooth OTA firmware and configuration updates, and optional N40/N52 magnet holding power support reliable use in demanding field service scenarios.
Metering Equipment Technical Data
| Product Model | TP-BT-PLUS |
|---|---|
| Communication Interface | BLE and SPP dual-mode |
| Supported Standards | IEC-62056, ANSI and DL/T645 protocols |
| Computer Communication Port | Type-C USB 3.0 / OTG |
| Maximum Data Rate | 57600 bps in normal operation; maximum 115200 bps available |
| USB Optical Probe Mode | Supported with data cable |
| Transparent Communication Mode | IEC62056-21 Mode C / Mode E / User Mode |
| Smart Communication Mode | IEC 62056-21 Mode C / Mode E |
| Maximum Frame Length | 512 bytes |
| Firmware and Configuration Update | OTA |
| Automatic Meter Reading (AMR) | Supported |
| Battery | 800 mAh optional rechargeable battery |
| Working Time | ~60 hours |
| Standby Time | ~1 year |
| Auto Power-Off | Default auto power-off after 5 minutes, adjustable |
| Sensor Light Wavelength | ~900 nm |
| LED Indicators | Power, communication, charge, BLE and reading |
| Magnet Holding Power | N40 / N52 optional |
| Dimensions | 31.5 mm / 33.5 mm |
| Weight | 65 g |
| Enclosure Material | PC with silicone protection included |
| Working Environment | -40 C to +70 C |
| Protection Class | IP65 |
| Accessory | Safety strap included |

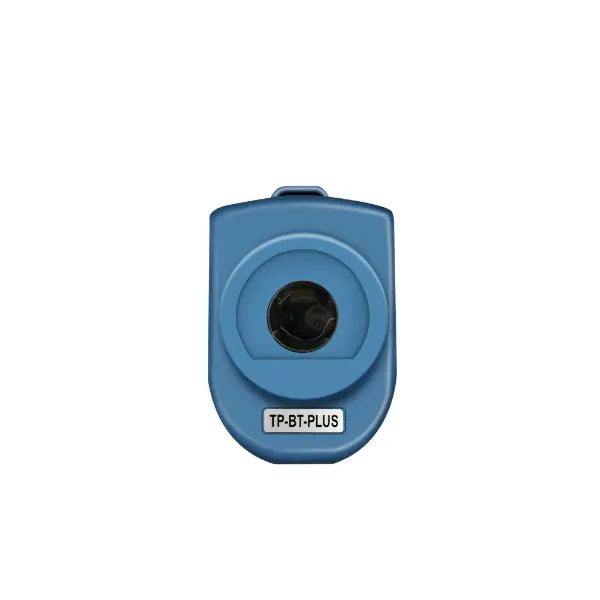

Compact Magnetic Optical Probe

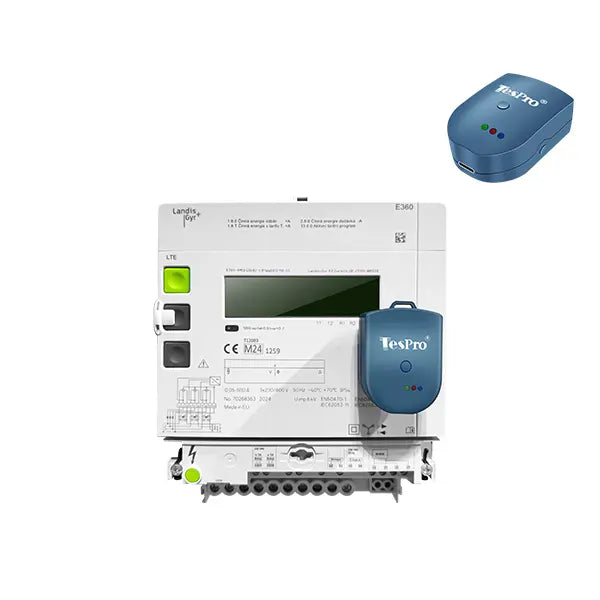

Custom Bluetooth Probe Integration for Utility Meter Reading
The TP-BT-PLUS is suitable for customized energy management and field meter reading projects that require BLE 5.4 + SPP two-way communication, international protocol support and developer-friendly SDK integration.
Product Documents
Frequently Asked Questions
Are these products compatible with my current system?
TP-BT-PLUS supports IEC-62056, ANSI and DL/T645 protocols. Please confirm meter protocol and optical port requirements with Tespro sales before project deployment.
What communication methods are supported?
The probe supports BLE and SPP dual-mode Bluetooth communication and can also work as a USB optical probe with a data cable.
Does the product support field use?
Yes. IP65 protection, LED indicators and optional magnet holding power help support demanding field service environments.
